SSH multi hop proxy

Scenario:

|————-Location A———————|           SSH over Internet          |—————-Location B—————–|

Windows PC —-> Raspberry Pi 1 (Linux) ———————————–> Raspberry Pi 2 (Linux) ——> Internet

Goal:

1.) Connect via SSH with Putty from Windows PC over Raspberry Pi 1 to  Raspberry Pi 2  and access its network and internet connection.

This can be accomplished with ssh multi hop proxy solution.

How to configure:

1.) SSH session from Windows PC to Raspberry pi 1.

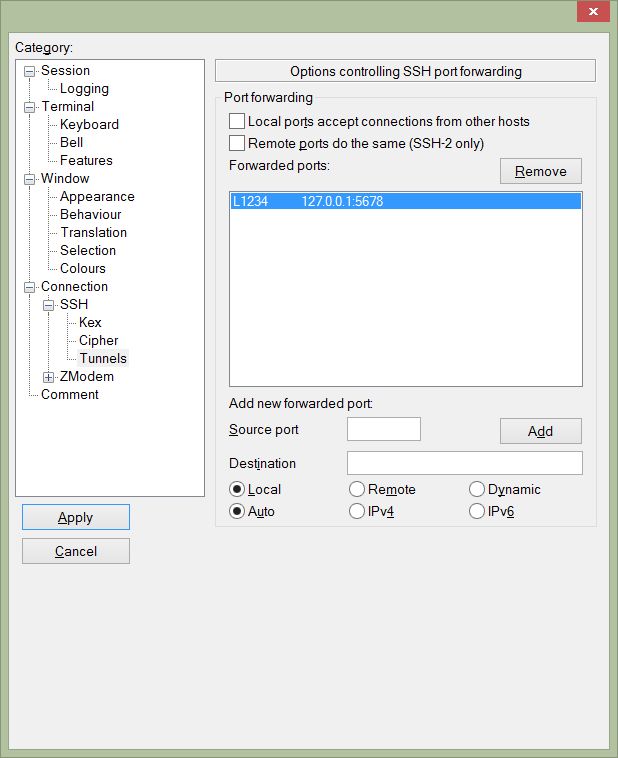

2.) Configure SSH port-forwarding. In my case Local Port 1234 on Windows PC will forward traffic to Raspberry pi 1 to port 5678.

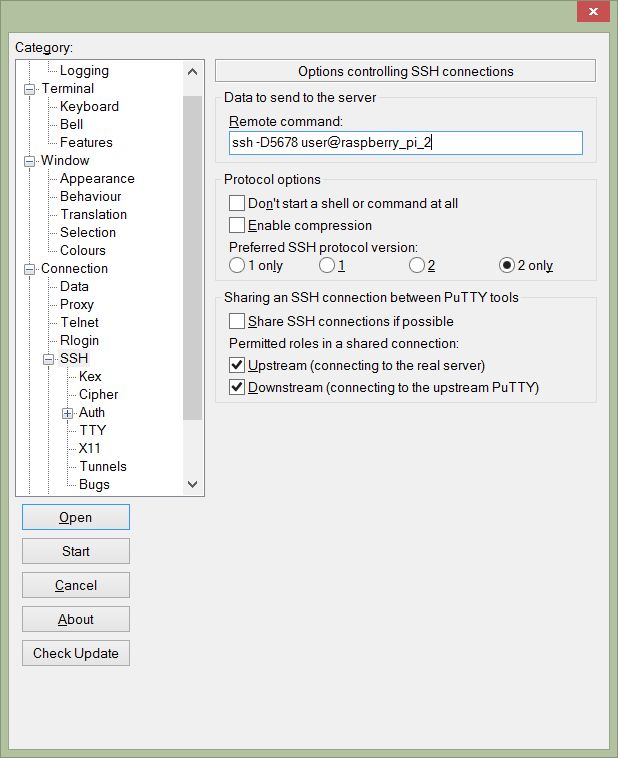

3.) Automatically a SSH session from Raspberry pi 1 to Raspberry Pi 2 will be established. Dynamic port forwarding 5678.

Example of usage:

1.) Possible to access network components as Router which is connected to Raspberry Pi 2 just type the IP address of the router as you would be in the network.

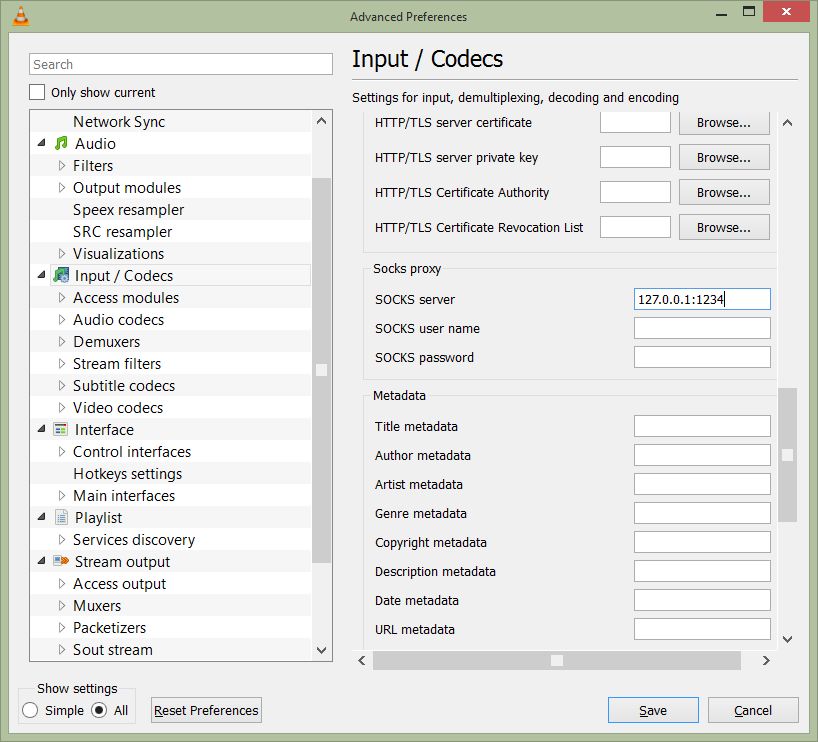

2.) In case that ISP in location B provides IPTV this is also accessible with help of udpxy and VLC (Proxy has to be configured: 127.0.0.1:1234)

3. Access Camera Module on Raspberry pi 2.
